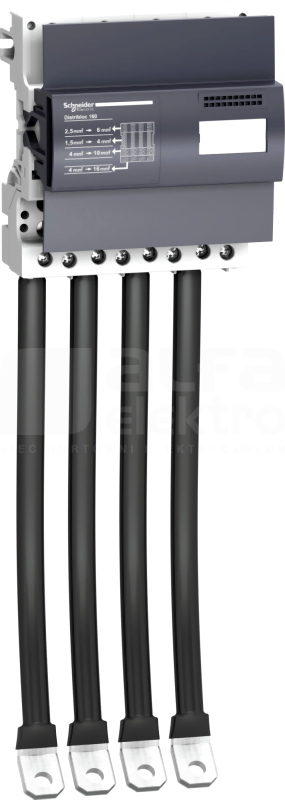

Linergy DX distribution block for Prisma G. It is compatibility with spacial enclosures. The rated operational voltage is 690V AC. The rated operational current is 125A. It provides IPxx B degree of protection. It provides adhesive labels for phase identification, identification label and prefabricated flexible connection. It could be connected on the tunnel type terminal and spring terminal by DIN rail mounting support. It provides 4 poles with anthracite grey (RAL 7016) surface treatment. Additional connector needed for INS which should be ordered separately. It provides 960 °C resistance to incandescent wire conforming to IEC 60695-2-11. It is suitbale for 6 total number of 18 mm modules and 3 pollution degree. It is certified by ASEFA. It is compliant with both IEC 61439-1, IEC 61439-2 and IEC 60947-7-1. It is also compliant with Green Premium (RoHS/REACH)
