XCSDM4801M12 ŁĄCZNIK MAGNETYCZNY Z MODUŁEM

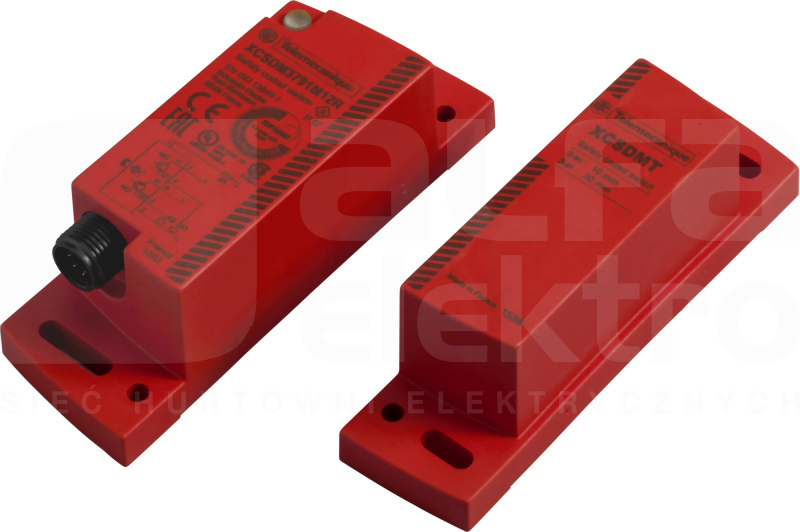

This product is part of the XCS range, an offer of safety limit switches. The coded magnetic switch is an electrical switch that makes or breaks contact in the presence of a magnetic field. It has 2 normally opened, staggered contacts. It has 2 solid-state PNP outputs with 1.5A, 24V DC ratings. It is designed to operate in hazardous environments. It is furnished with a pre-cabled (M12) for electrical connection. It supports lateral approach in 9 directions. It offers long electrical life with electrical durability of about 1.2 million operating cycles. It is an IP67 rated product. The casing is made of thermoplastic PBT. Its dimensions are 34mm (Width) x 32mm (Depth) x 100mm (Height) and weighs 0.215kg. It is intended as far as safety is concerned all dangerous machines in all sectors are involved. Such as packaging, handling, robotics, machine tools, presses, automotive sector. This product is certified by CSA, TUV and UL. It meets EN 13849-1, EN/IEC 60947-5-1, EN/IEC 60947-5-2, EN/IEC 60947-5-3, EN/IEC 62061, IEC 61508 and ISO 14119 standards. The coded magnetic switch offers protection of operators by stopping the machine when the actuator attached to the machine guard is withdrawn from the head of the switch. Safety switches for the protection of operators, by controlling the safe opening and interlocking of guards and covers in your installations
