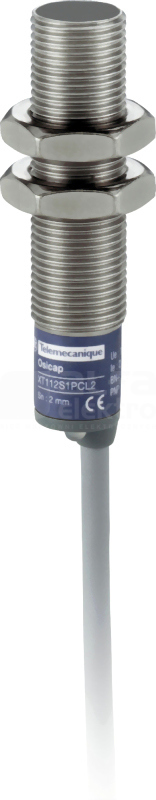

The XT offer is a range of capacitive proximity sensors, dedicated to the detection of insulated or conductive materials. These sensors are suitable for the detection of any object irrespective of material or conductivity. This sensor features a cylindrical stainless steel 303 case, diameter 12mm, threaded M12 x 1 and a 2m long PVC cable. Advantages of this capacitive proximity sensor, no physical contact with the object to be detected, high operating rates, solid-state product, no moving parts. It is flush mountable with a sensing distance of 2mm. 3-wire, 24V DC, with NO function and a PNP output. Output state indication by a yellow LED. It is suitable for detection (presence or passage) of paper, cardboard, glass, etc. This sensor complies with CE and cETLus certifications, and with IEC 60947-5-2 and UL 61010-1 standards. A 90° fixing bracket XXZ12, to be ordered separatly, is available to facilitate the mounting of this sensor
Dane techniczne
Częstotliwość przełączania
300 Hz
Długość czujnika
50 mm
Liczba wyjść półprzewodnikowych z funkcją sygnalizacji
This fixing bracket (90 degrees mounting) is for 12mm diameter XX ultrasonic sensors. It provides maximal dimensional accuracy for precise sensing despite vibrations thanks to its robust and rigid construction
