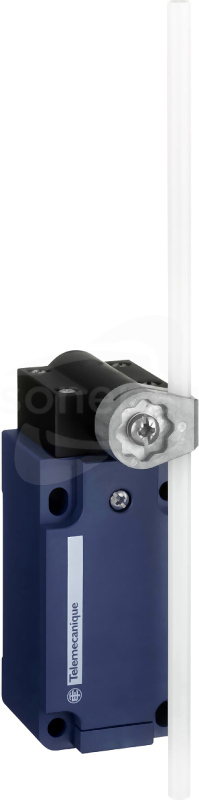

The XCKS limit switches range is designed in a plastic format (form B in accordance with the CENELEC EN 50041 standard). The XCKS159H29 limit switch is composed of a fixed plastic body and a rotary plastic head. The fixing is done by the body. It has a thermoplastic spring return round rod lever operator with a lateral approach (1 or 2 programmable directions). The movement of the head is rotary. It has one normally closed and one normally open snap action contacts without positive opening operation. It has one cable entry tapped for M20 x 1.5mm cable gland and it is powered by screw-clamp terminals (clamping capacity : 1 x 0.34…2 x 1.5mm²). The contactor can perform an average of 20 million no-load operating cycles without mechanical failure. The XCKS159H29 limit switch is made of a plastic body and a plastic head. It weighs 0.17kg and measures 72.5mm in height, 40mm in width, and 55mm in depth. This limit switch complies with UL, CSA, and CCC standards, and its protection level complies with IP65 (resistant to dust and water jets). Telemecanique Sensors limit switches are ideal for industrial environments : they are precise, robust, reliable, easy to install and offer high repeatability. A limit switch is a device that converts a mechanical motion into an electrical control signal
