Accessories, Motor operator, The motor automatically tensions the spring force storage mechanism for remote or local actuation., Retrofitting kit, Maximum operating frequency Actuations/minute 3, Please note - the circuit-breaker"s switching frequency = 60/h, Rated control voltage Us 220 - 240 V AC 50/60 Hz, 220 - 250 V DC V, Operating range x US 0,85 - 1,1 Factor, max. Betriebsstrom In 1 A, max. Anlaufstrom (35ms) In 10 A, max. Leistung AC/DC 280 AC / 150 DC VA/W, max. Anlaufleistung (35ms) AC/DC 4 VA/W, For use with IZMX16…, INX16…

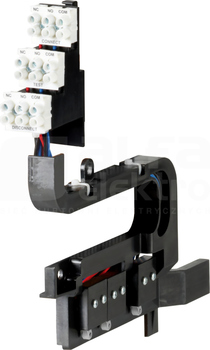

Accessories, Position signalling switches, One changeover contact each for the Disconnected, Test, and Connected positions., Mounted on left side, Installation type Withdrawable, For use with IZMX-CAS16…

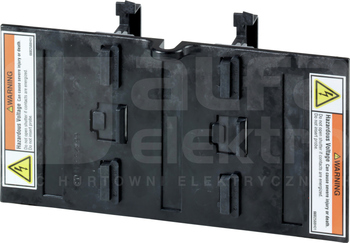

Accessories, Shutter, When the breaker is withdrawn from its connected position, the shutters automatically cover the cassette’s live main terminals., Installation type Withdrawable, Pole 3, For use with IZMX-CAS163…, for withdrawable unit
