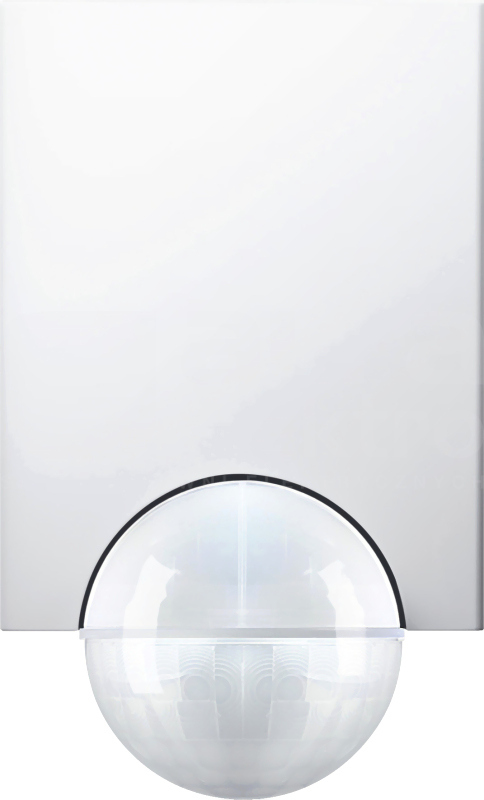

CZUJNIK RUCHU 110 MERTEN ARGUS

Electronic outdoor movement detector. 110° surface monitoring for smaller house fronts and sections of the house. 360° short-range zone with a radius of approx. 4 m. Very easy installation thanks to large wiring compartment and plug-in connection system. Looping through is possible. Integrated LED function display for alignment at installation site. Potentiometers for adjustment are protected under the easily accessible cover plate. Can be installed on walls and ceilings without additional accessories. Can be mounted on inner/outer corners and stationary pipes with installation bracket, art. no. MTN5652xx. The area of detection can be adjusted to local conditions with the aid of the spherical head which can be adjusted horizontally, vertically and axially. The design is independent of the position of the sensor head. Possible to blank out individual lens areas. 360° short-range zone (approx. 4 m radius). Large wiring compartment and plug system. Looping is possible. LED function display for fast alignment at the installation site. Operating elements are protected under the easily accessible cover plate. Flexibly adjustable sensor head. Possible to blank out individual lens areas. Can be installed on walls and ceilings without additional accessories. Can be mounted on inner/outer corners and stationary pipes using a mounting bracket. Mains voltage: AC 230 V, ± 10 %, 50 Hz. Incandescent lamps: AC 230 V, max. 2000 W. Halogen lamps: AC 230 V, max. 1200 W. Fluorescent lamps: AC 230 V, 1200 W uncompensated. Capacitive load: max. 35 µF. Max. switching current: 16 A, AC 230 V, cos Phi 1. Angle of detection: 110°. Range: max. 12 m. Number of levels: 7. Number of zones: 92 with 368 switching segments. Light sensor: infinitely adjustable from 3-1000 lux. Time: 1 sec. to approx. 8 min. in 6 levels. Neutral conductor: required. Possible to set the sensor head. Wall mounting: 9° up, 24° down, 12° left/right, ± 12° axial. Ceiling mounting: 4° up, 29° down, 25° left/right, ± 8.5° axial. Type of protection: IP 55. Contents: With cover plate and segments to limit the area of detection, screws and plugs. Colour: polar white
