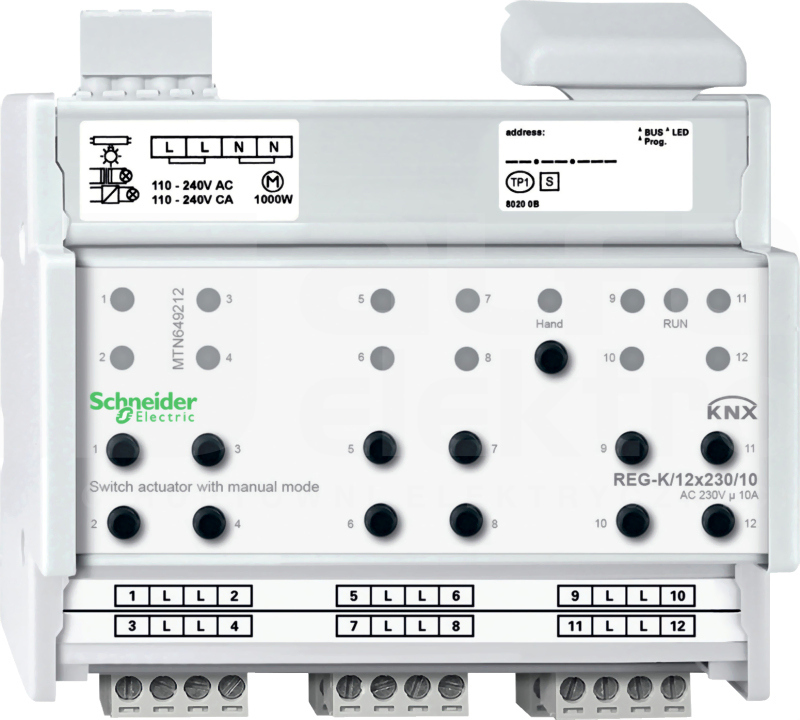

Switch actuator REG-K/12x230/10 with manual mode. For independent switching of up to 12 loads via make contacts. The function of the switching channels is freely configurable. All switching outlets can be operated manually using push-button operation. Channel status display via LEDs. A green LED indicates readiness for operation. With integrated bus coupler. For installation on DIN rails TH35 according to EN 60715. The bus is connected using a bus connecting terminal. a data rail is not necessary. KNX software functions: Operation as break contact/make contact. Programmable behaviour for download. Delay functions for each channel. Staircase lighting function with/without manual OFF function. Cut-out warning for staircase lighting function. Scenes. Central function. Disable function. Logic operation or priority control. Status feedback function for each channel. Power supply: Nominal voltage: AC 230 V, 50 - 60 Hz. External auxiliary voltage (optional): AC 110 - 240 V, 50 - 60 Hz, max. 2 VA. For each switch output: Nominal current: 10 A, cos Phi 1. 10 A, cos Phi 0.6. Incandescent lamps: AC 230 V, max. 2000 W. Halogen lamps: AC 230 V, max. 1700 W. Fluorescent lamps: AC 230 V, max. 1800 W, uncompensated. AC 230 V, max. 1000 W parallel-compensated. Capacitive load: AC 230 V, max. 105 µF. Device width: 6 modules, approx. 108 mm. Contents: With bus connecting terminal and cable cover. Colour: light grey
