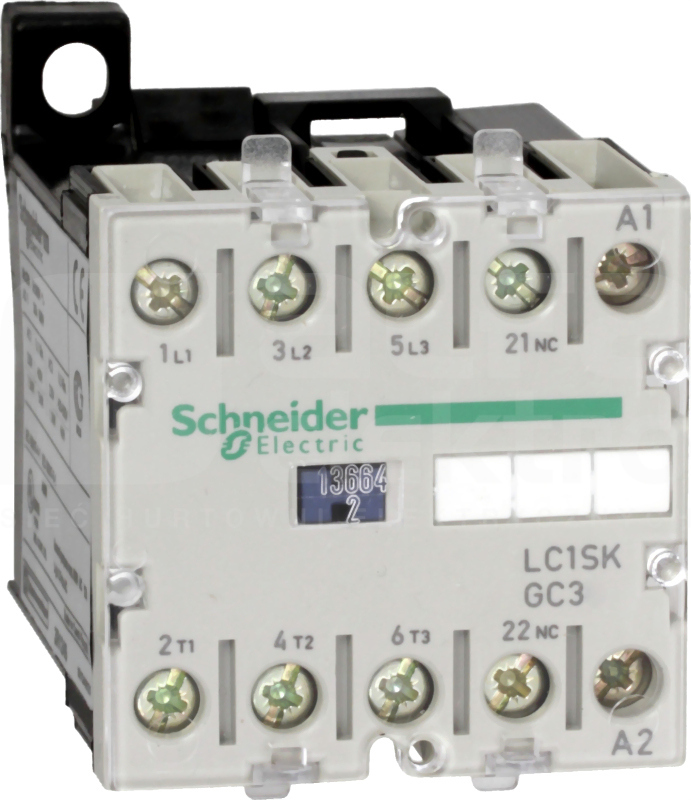

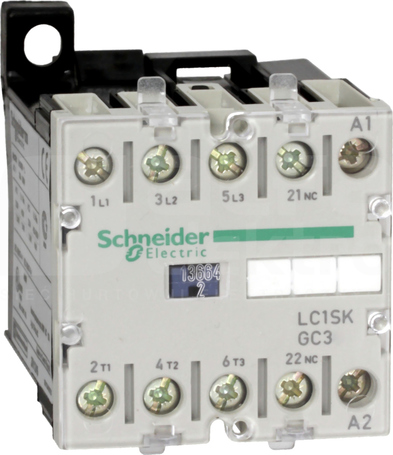

TeSys SKGC mini-contactor, 3 poles (3NO), for non-inductive load applications up to 20A/690V AC-1, and for 3-phase motor control applications up to 9A/690V AC-3 (4kW@400V). It provides a 48V 50/60Hz AC control circuit, 1NO auxiliary contact, a transparent protective cover to prevent front face access, connection by screw terminals. For operating rates until 1200 cycles/hour and ambient temperature -20/+50°C, it procures high reliability and durability. For use in modular panels, compact (45mm width), clipping on 35mm DIN rail or fixing by 2 screws. Location available to insert a suppressor module LA4SK (to be ordered separately). Multi standards certified (IEC, UL, CSA), Green Premium compliant (RoHS/REACh)
Moduł tłumiący TeSys SK do ochrony cewek styczników miniaturowych LP1SK i przekaźników CA3SK. Do użytku z obwodami sterowania 24-250 V DC, zapewnia ochronę za pomocą diody, zapewniając ochronę przed przepięciami. Mocowanie po prawej stronie stycznika (bez użycia narzędzi), element spolaryzowany...
TeSys SK suppressor module, for coil protection of mini contactors LC1SK, LC1SKGC, LP1SK and mini control relays CA2SK, CA3SK. To be used with 24-48V AC or DC control circuits, it provides varistor protection limiting the transient voltage to 2 Uc max. Clipping onto the right-hand side of contactor (no...
TeSys SK suppressor module, for coil protection of mini contactors LC1SK, LC1SKGC, LP1SK and mini control relays CA2SK, CA3SK. To be used with 72-250V AC or DC control circuits, it provides varistor protection limiting the transient voltage to 2 Uc max. Clipping onto the right-hand side of contactor...
