ACW21M129012 WYŁĄCZNIK CIŚNIENIOWY

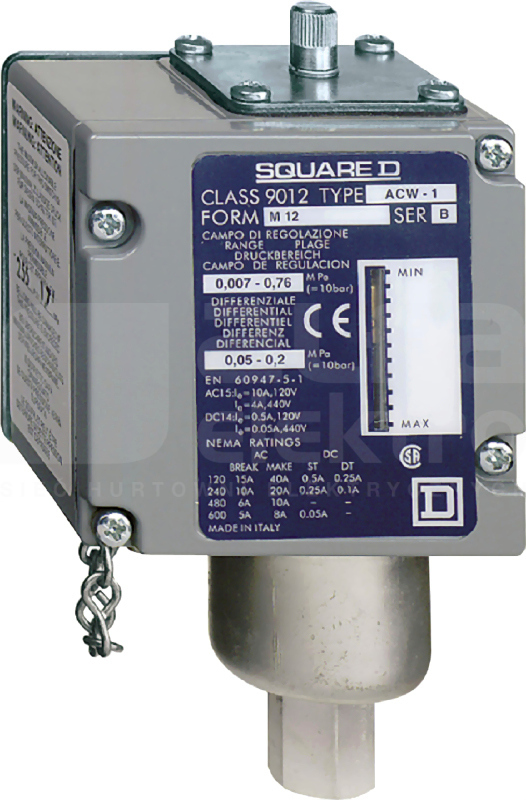

This product is part of the ACW range, an offer of electromechanical pressure switches for pressure control. This electromechanical pressure switch features a G1/4 (female) connector for fluid connection and bellows pressure actuator. It has an adjustable scale for external setting and a maximum pressure rating of 7.6bar. This pressure switch is suitable for controlling fluids such as air (-73°C to 125°C), hydraulic oil (-73°C to 125°C) and non corrosive fluid (-73°C to 125°C). It is furnished with screw clamp terminals for electrical connection and 1 entry tapped for PG13.5 cable gland and 2 C/O single-pole snap action contacts. Depending on application, it offers a mechanical durability of about 1 million operating cycles. It is an IP65 rated product. The enclosure is made of zinc alloy. Its dimensions are 88mm (width) x 68mm (depth) x 167mm (height). It weighs 1.55kg. It is suitable for regulation between 2 thresholds. For controlling pressure of air and water in residential and industrial applications. This product is certified by CSA, EAC and UL. It meets CE and EN/IEC 60947-5-1 standards. One of the most comprehensive catalogues of industrial and power pressure sensors on the market. The line of XM Pressure Sensors and Switches (formerly known as OsiSense) combine the latest pressure sensing technology with adaptability to virtually any configuration
