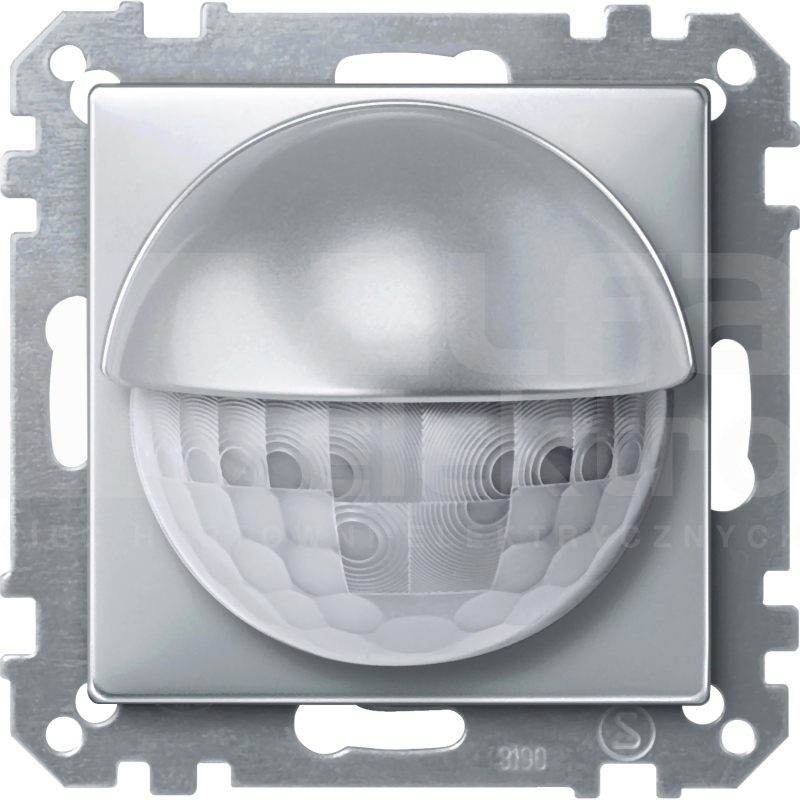

MERTEN KNX aluminium Czujnik ruchu ARGUS 180/2,2

KNX ARGUS 180/2.20 m flush-mounted. For System M. Indoor movement detector with anti-crawl protection. When a movement is detected, a data telegram defined by the programming is transmitted. With integrated bus coupling unit. For wall mounting in a size 60 mounting box, optimal installation at 2.2 m. KNX software functions: Five movement blocks: up to four functions can be triggered per block. Telegrams: 1 bit, 1 byte, 2 bytes. Normal operation, master, slave, safety pause, disable function. Sensitivity, brightness and staircase timer can be set using the ETS or the potentiometer. Two movement sensors: the sensitivity and range can be set separately for each sensor. Self-adjusting staircase timer. Angle of detection: 180°. Range: 8 m right/left, 12 m to the front (for a mounting height of 2.20 m). Mounting height: 2.2 m or 1.1 m with half the range. Number of levels: 6. Number of zones: 46. Number of movement sensors: 2, sector-orientated, adjustable. Sensitivity: infinitely adjustable (ETS or potentiometer). Light sensor: infinitely adjustable from approx. 10 to 2000 Lux (ETS or potentiometer). Time: adjustable in steps from 1 s to 8 min (potentiometer) or adjustable from 1 s to 255 hours (ETS). Contents: With bus connecting terminal and supporting plate. With cover segments to limit the area of detection. Material: thermoplastic classy matt. Colour: aluminium
