XCKN2149G11 ŁĄCZNIK KRAŃCOWY

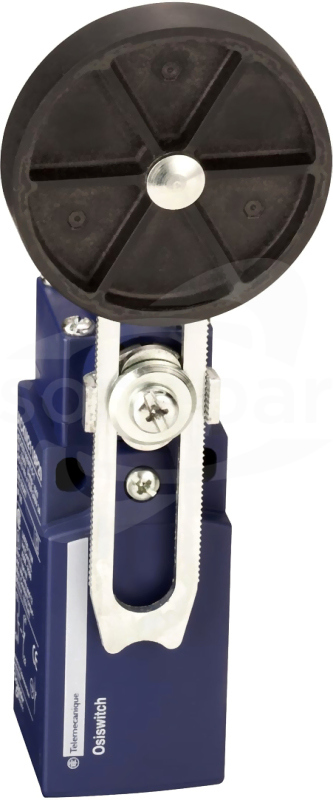

The XCKN range is an offer of monolithic plastic limit switches dedicated to repetitive machines. The XCKN2149G11 limit switch is composed of a fixed plastic body and a rotary plastic head. The fixing is done by the body. It has a thermoplastic spring return roller lever operator with a lateral approach (2 directions). The movement of operating head is rotary. It has one normally closed and one normally open snap action contacts with positive opening operation. It has one cable entry tapped for Pg 11 cable gland and it is powered by screw-clamp terminals (clamping capacity : 1 x 0.34…2 x 1.5mm²). The contactor can perform an average of 10 million no-load operating cycles without mechanical failure. The XCKN2149G11 limit switch is made of a plastic body and a plastic head. It weighs 0.2kg and measures 173mm in height, 30mm in width, and 48mm in depth. It is intended for all industrial machine applications such as packaging, materials handling, conveying, machining, food and beverage, service sector, etc. This limit switch complies with UL, CSA, and CCC standards, and its protection level complies with IP65 (resistant to dust and water jets). Telemecanique Sensors limit switches are ideal for industrial environments : they are precise, robust, reliable, easy to install and offer high repeatability. A limit switch is a device that converts a mechanical motion into an electrical control signal
