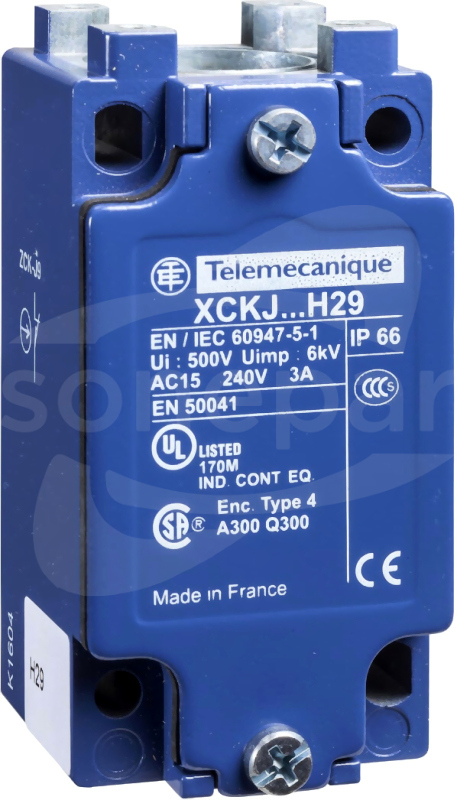

ZC products are part of the XC standard range, an offer of limit switches. The ZCKJ9H29 is a limit switch body compatible with the range XCKJ. This limit switch body has 2 normally closed snap action silver plated contacts, and its minimum actuation speed is 0.01m/min. It connects through screw-clamp terminals (clamping capacity: 1 x 0.34...2 x 1.5mm²) and it has 1 entry tapped for M20 x 1.5 cable gland. It is a limit switch body with a conventional enclosed thermal current of 10A and rated operating current of 3A at 240V AC and 0.27A at 250V DC. It is furnished with screw terminals for electrical connection. It is an IP66 and IK07 rated product. This limit switch body is made of metal and it weighs 0.31kg. This product can be used to assemble a limit switch adapted to your needs or used as a spare part. It is compatible with the XCKJ limit switches. The associated heads are ZCKE05, ZCKE66, ZCKE06, ZCKE619, ZCKE64, ZCKE61, ZCKE62, ZCKE63, ZCKE629, ZCKE21 and ZCKE65. The ZC range makes the XC limit switches modular by giving you the possibility to assemble the product that best suits your needs. IEC standard format limit switches consist of products designed according to EN 50047, EN 50041 as well as popular XCM and XCKM limit switches ranges
