MIP-3-12-PT-MU Obudowa podtynkowa

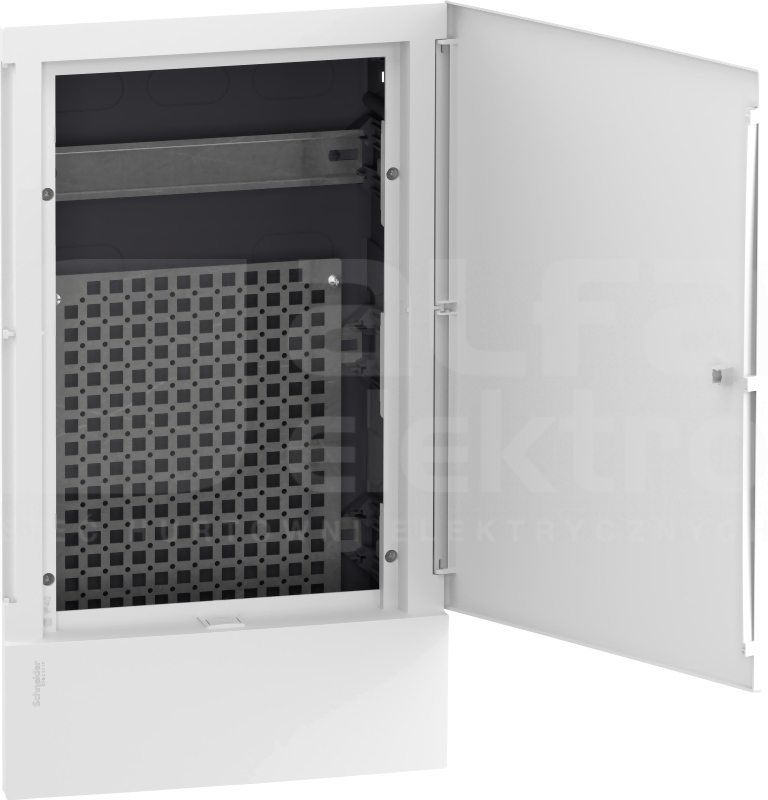

This Mini Pragma enclosure is a flush mounted versatile enclosure. This plastic enclosure is composed of 1 row of 12 modules of 18mm. It can accomodate all types of modular or non-modular switchgear. This enclosure is dedicated to indoor installation. The IP degree of protection is IP40. It is provided with a plain white door. The colour of enclosure is white (RAL 9003). It is intended for new or renovated installation in residential. The cables can enter via the top or sides of the enclosure by pre-cutted holes, enabling entry by cable, tube or trunking. It is equipped with a back box and a reversible front face. It is provided with a DIN rail and an universal perforated grid, both fixed in 2 different positions on a removable chassis. There is no terminal block. The electrical insulation class is class II (double insulated). The Ui rated insulation voltage is 400V. The In rated current is up to 63A. The dissipated power is 52W. This product complies with IEC 60670-1 and 24 standard. The dimensions are (W) 270mm x (H) 478mm x (D) 98mm. The material is a plastic self-extinguishing material. Its resistance to flames and to abnormal heat is 750°C for the door and the front face, and 850°C for the back box as per IEC 60695-2-11. The IK degree of protection is IK07. The operating temperature is -25°C to 60°C
