Thalassa PLS box polyester rear with opaque PC cover. 360 x 720x 230 mm. Insulating modular box. One piece moulded body. Wall mounted. High plain cover, cover locking screw removable. Polyester reinforced with fibreglass rear, polycarbonate cover. Grey RAL 7035. IP65, IK09, NEMA (13,4X) 960°C fire resistance. Insulation Class II
Dane techniczne
Drzwi/pokrywa z materiału o wysokiej wytrzymałości mechanicznej
3.5 mm
Głębokość
230 mm
Głębokość wewnętrzna
213.5 mm
Numer RAL
7035
Obudowa z materiału o wysokiej wytrzymałości mechanicznej

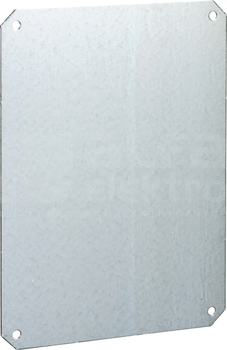

Thalassa PLS metallic mounting plate. For boxes H 360 x W 720 mm. Multi-purpose application. Mounting location on back inserts (fixing by screw type M6). Plain mounting plate. 150 Kg permanent permissible load. Galvanised Steel

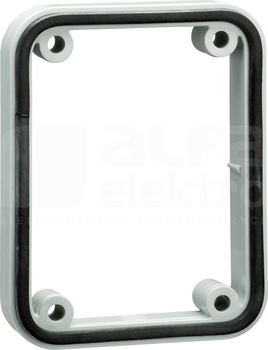

Thalassa PLS full-opening coupling frame. Length 290 mm for 36 cm faces of PLS box. Multi-purpose application. Mounting location on side coupling of 2 modular boxes. 1 frame and 1 gasket. Set of 10. IP65

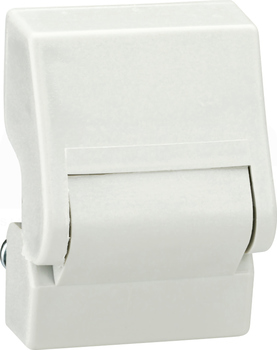

Thalassa PLS external hinges for PLS box. Multi-purpose application. Fixing mode by element - between rear and cover location. Set of 2 plastic. Made in plastic

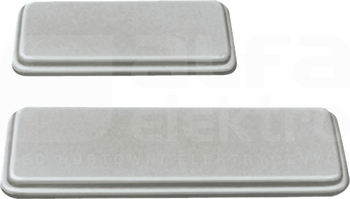

Closing side plate of PLS box. For 360 mm face. W is 290 mm. Multi-purpose enclosure accessory. Front mounting location. Fixing by screws. Grey RAL 7035
Thalassa PLS insulating bakelite mounting plate. For boxes H 360 x W 720 mm. Multi-purpose application. Mounting location on back inserts (fixing by screw type M6). Insulating mounting plate. 150 Kg permanent permissible load. Bakelite. Black RAL 9005

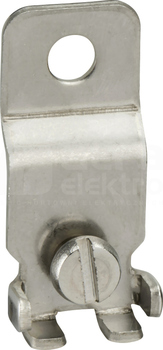

Thalassa PLS Stainless stell wall mounting lugs for PLS box. W100XD100 mm. Multi-purpose application. Fixing mode by screwed - from the outside location. Mounting location on top and bottom, on rear of the enclosure. 4 lugs. Made in stainless steel
