XZCPV1141L2 2m KABEL M12 ZE ZŁĄCZEM ŻEŃSKIM

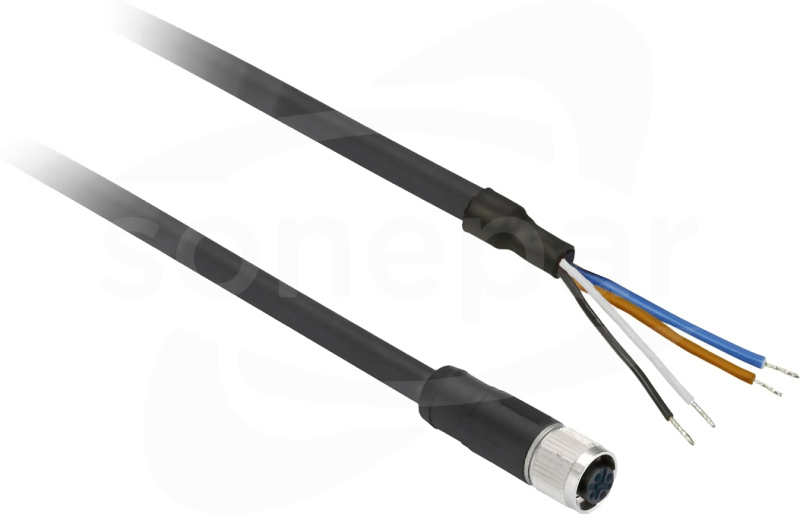

This product is part of the XZ range, an offer of cordsets and connectors. This cable is made up of 4 wires and has a 5-pin M12 straight female connector with a metal collar. It is designed in polyvinyl chloride for general use. This cable is used for easy connection of sensors with connectors to terminal blocks or PLC inputs. Its rated operational voltage is 250V/AC or 300V/DC and its nominal current is 3A. Its contact resistance is 5000µOhm and its minimum insulating resistance is 1GΩ. It is dustproof, resistant to water jets (IP65), and can be temporarily immersed in water (IP67). This cable has a length of 2m and a diameter of 4.6mm. It is made up of 4 wires, each section of which is 0.25mm2. Its color is black and its weight is 0.09kg. It is intended for general use like machines with low environmental and mechanical stresses (-25°C to +80°C in operation if the cable remains static). This cable complies with cULus certification. It is compatible with a 5-pin M12 male connector. XZ range includes a wide range of cordsets, connectors, and connection boxes designed for a simple connection process and a quick reference identification
