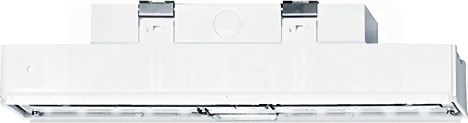

ECOSIGN 160 P MSC E1D WH IP65 Oprawa LED awaryjna

LED Escape sign luminaire Luminaire with local battery supply for 1 h emergency lighting in maintained or non-maintained mode, with automatic test (auto-test) via the luminaire, optional central monitoring via DALI, display of luminaire status via status LED; addressing also alternatively possible visually or via EZ-addressing; surface mounted; control unit with NFC interface for addressing, configuration and maintenance via PROset Pen (article no.: 22170290) or PROset app; addressing also alternatively possible visually or via EZ-addressing; Maintained mode: +5°C to +35°C, non-maintained mode: +5°C to +40°C; power supply: 220-240 V AC (+/- 10%), 50-60 Hz; white polycarbonate base unit with metal clips at sides; basic version can be fitted to ceiling without tools; plug-in terminals for through-wiring up to 2.5 mm²; no tools required to fit frameless pictogram; Non-maintained and maintained mode settable via jumper and NFC interface; Luminaire input power: 6.6 W; 10 % dimming value in emergency mode; protection rating: IP65, class of protection: SC1; Impact strength: IK03; dimensions of luminaire including escape sign: 335 x 55 x 238 mm; weight: 0.49 kg, Luminaire wired with halogen-free leads; Luminaire with D symbol (for use in environments in which the accumulation of conductive dust on the luminaire can be expected); Robust, integrated battery with 3-year warranty. Valid according to terms of the manufacturer"s warranty, available at https://www.zumtobel.com/media/downloads/Garantiebedingungen_DE.pdf; Battery warranty invalid if installation takes place three (3) months after delivery EXW (Incoterms 2010)
