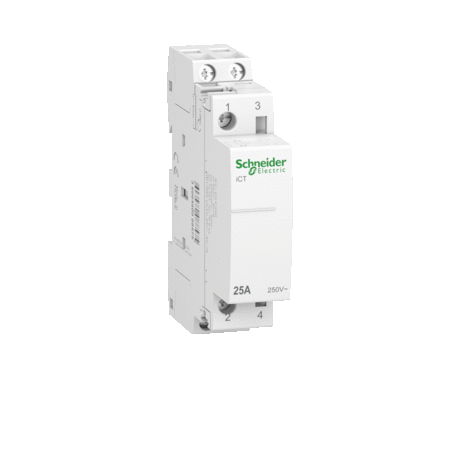

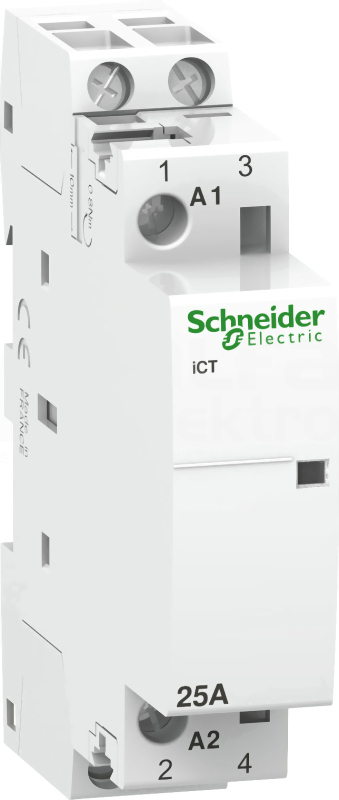

Stycznik modułowy serii iCT, o numerze A9C20732, iCT50-25-20-230, napięcie sterowania 230/240 VAC 50Hz, 2 styki zwierne, prąd znamionowy AC7A: 25 A, do sterowania obwodami elektrycznymi. Optyczny wskaźnik stanu styków wyjściowych, możliwość rozbudowy o styki pomocnicze Jest to urządzenie zdalnego sterowania 2P z 2 stykami normalnie otwartymi
Dane techniczne
Głębokość wbudowania
43.5 mm
Kategoria użytkowania
7
Liczba modułów
1
Liczba styków rozwiernych
0
Liczba styków zwiernych
2
Liczba styków zwiernych
2
Maksymalna zdolność łączeniowa dla świetlówek
1200 VA
Maksymalna zdolność łączeniowa dla świetlówek (kompensacja DUO)
2400 VA
Maksymalna zdolność łączeniowa dla świetlówek (z kompensacją równoległą)

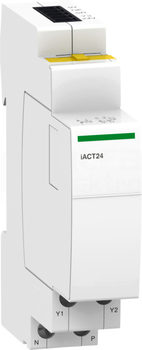

This Acti 9 iACT24 is reliable control and indication auxiliary. It has 1 normally open signal contact. Control voltage is 24VDC and 230V AC. Mounting is performed on the left of Acti9 iCT contactors with operational current less than or equal to 25A. The degree of protection is IP20 and IP40 in an enclosure...

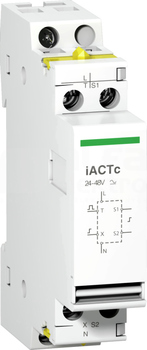

This Acti 9 iACTc is modular and reliable double control input auxiliary. Rated supply voltage is 220VAC to 240VAC and control voltage is 230VAC to 240VAC. Mounting is performed on the left of Acti9 iCT contactors. The degree of protection is IP20 and IP40 in an enclosure. It is DIN rail mountable. It...
This Acti 9 iACTc is modular and reliable double control input auxiliary. Rated supply voltage is 24VAC to 48VAC and control voltage is 24VAC to 48VAC. Mounting is performed on the left of Acti9 iCT contactors. The degree of protection is IP20 and IP40 in an enclosure. It is DIN rail mountable. It is...

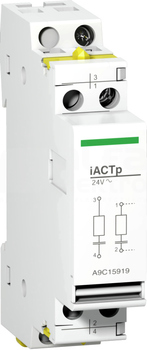

This Acti 9 iACTp is modular and reliable overvoltage protection auxiliary (2 circuits). It operates from 12VAC to 48VAC, at a frequency of 50/60 Hz. Mounting is performed on the left of Acti9 iCT contactors. The degree of protection is IP20 and IP40 in an enclosure. It is DIN rail mountable. it si compatible...
This Acti 9 iACTp is modular and reliable overvoltage protection auxiliary (2 circuits). It operates from 220VAC to 240VAC, at a frequency of 50/60 Hz. Mounting is performed on the left of Acti9 iCT contactors. The degree of protection is IP20 and IP40 in an enclosure. It is DIN rail mountable. it si...
This Acti 9 iACTp is reliable overvoltage protection auxiliary (2 circuits). Control voltage is 48VAC to 127VAC. Mounting is performed on the left of Acti9 iCT contactors with operational current less than or equal to 25A. The degree of protection is IP20 and IP40 in an enclosure. It is DIN rail mountable...

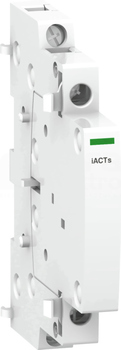

This Acti 9 iACTs is reliable remote indication auxiliary. It has 1 changeover contact, it operates from 24VAC to 240VAC and 24VDC to 130VDC. Mounting is performed on the right of Acti9 iCT contactors. The degree of protection is IP20 and IP40 in an enclosure. It is DIN rail mountable. It is compatible...
This Acti 9 iACTs is reliable remote indication auxiliary. It has 2 normally open contacts, it operates from 24VAC to 240VAC and 24VDC to 130VDC. Mounting is performed on the right of Acti9 iCT contactors. The degree of protection is IP20 and IP40 in an enclosure. It is DIN rail mountable. It is compatible...
This Acti 9 iATEt is reliable time delay auxiliary. It operates from 24VAC to 240VAC and 24VDC to 110VDC control voltage. Mounting is performed on the left of iTL impulse relay or iCT contactor with yellow clips. The degree of protection is IP20 and IP40 in an enclosure. It is DIN rail mountable. 5 time...
This set of 10 Acti 9 electrical accessories it is dedicated to ensure the mechanical and/or electrical link. it is mounting between Acti9 iCT contactors or iTL impulse relays and their auxiliaries
