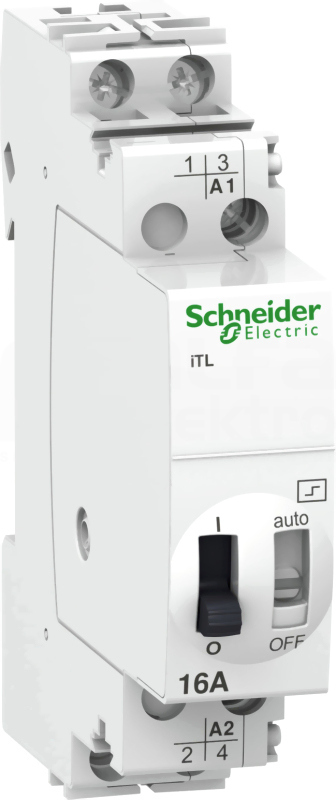

Przekaźnik impulsowy iTL-16-20-48 16A 2NO 48VAC/24VDC ,o numerze A9C30212. Możliwość rozbudowy o styki pomocnicze Stopień ochrony to IP20 i IP40 w obudowie. Jest montowany na szynie DIN. Stosowany jest głównie w aplikacjach sterowania oświetleniem. Ten produkt jest zgodny z normami IEC/EN 60669-1, IEC/EN 60669-2-2
Dane techniczne
Częstotliwość napięcia sterowania 1
50 - 60 Hz
Głębokość wbudowania
43.5 mm
Liczba styków przełącznych
0
Liczba styków rozwiernych
0
Liczba styków zwiernych
2
Liczba styków zwiernych
2
Maksymalna zdolność łączeniowa dla świetlówek
1300 VA
Maksymalna zdolność łączeniowa dla świetlówek (kompensacja DUO)
2000 VA
Maksymalna zdolność łączeniowa dla świetlówek (z kompensacją równoległą)
This Acti 9 iATEt is reliable time delay auxiliary. It operates from 24VAC to 240VAC and 24VDC to 110VDC control voltage. Mounting is performed on the left of iTL impulse relay or iCT contactor with yellow clips. The degree of protection is IP20 and IP40 in an enclosure. It is DIN rail mountable. 5 time...

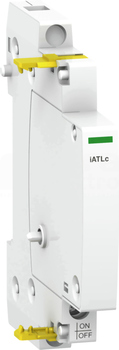

This Acti 9 iATLc is reliable centralized control auxiliary. Control voltage is between 24VAC and 240VAC. Mounting is performed on the right of iTL impulse relay with yellow clips. The degree of protection is IP20 and IP40 in an enclosure. It is DIN rail mountable. It is associated with iTL impulse relays...

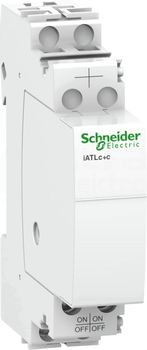

This Acti 9 iATLc+c is reliable multilevel centralized control auxiliary. Is operates with 24VAC to 240VAC control voltage. Mounting is performed on the right of iATLc+s or iATLc. The degree of protection is IP20 and IP40 in an enclosure. It is DIN rail mountable. It is associated with iTL impulse relays...
This Acti 9 iATLc+s is reliable centralized control and remote indication auxiliary. It has 1 changeover contact, and it operates with 24VAC to 240VAC control voltage. Mounting is performed on the right of iTL impulse relay with yellow clips. The degree of protection is IP20 and IP40 in an enclosure...
This Acti 9 iATLs is reliable remote indication auxiliary. It has 1 changeover contact, and it operates with 24VAC/DC to 240VAC/DC control voltage. Mounting is performed on the right of iTL impulse relay with yellow clips. The degree of protection is IP20 and IP40 in an enclosure. It is DIN rail mountable...
This set of 10 Acti 9 electrical accessories it is dedicated to ensure the mechanical and/or electrical link. it is mounting between Acti9 iCT contactors or iTL impulse relays and their auxiliaries
