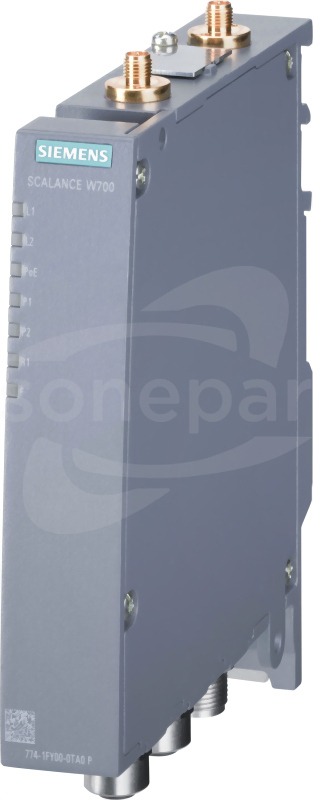

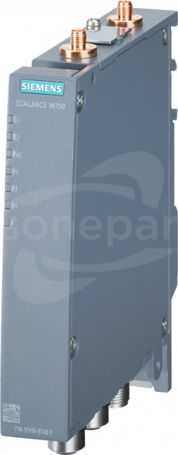

IWLAN Access Point, SCALANCE W774-1 M12 EEC, 1 radio, 2 R-SMA antenna port, iFeatures support via key plug, IEEE 802.11a/b/g/h/n, 2.4/5GHz, gross data rate 300 Mbit/s, 2x M12 max. 100 Mbit/s, PoE integrated 2-port switch, redundant 24 V DC,M12 A-coded IP30, -30... 65 °C, plug slot WPA2/802.11i/e,conformal coating EN 50155, observe national approvals! CERT ID: MSN-W1-M12-E2, scope of delivery: Manuals on CD-ROM, English/German; M12 sealing caps, for operation in the USA SCALANCE W774-1 M12 EEC (US) 1x wireless, 2x R-SMA antenna port, iFeatures support via KEY-PLUG, IEEE 802.11a/b/g/h/n, 2.4/5 GHz, gross data rate 300 Mbps, 2x M12 max. 100 Mbps, PoE-integrated 2-port switch, redundant 24 V DC, IP30, temperature range -30°C - 65°C, plug slot, for operation in the US. Access Point with one built-in wireless interface for setting up wireless connections with iFeatures (iPCF/iPCF-MC) via removable data storage medium (plug). 1 unit.The devices can be used especially in harsh environments and are approved for use in rail and road transport. They are very compact and suitable for partition wall mounting.2x2 MIMO technology for stable radio connections, secure wireless communication via PROFINET with PROFIsafe up to 300 Mbps. The devices comply with EN 50155 approval for railway applications, are shock- and vibration-resistant, and can also be used in environments with large temperature fluctuations through the coated printed circuit boards (conformal coating). Optional activation of supplementary functions (iFeatures) via removable data storage medium (plug). Security is increased by activation of Inter-AP Blocking in combination with a special plug.The comprehensive accessories include a wide antenna portfolio, plug-in connectors, stripping tools, mounting accessories as well as cabling technology that top off the system
