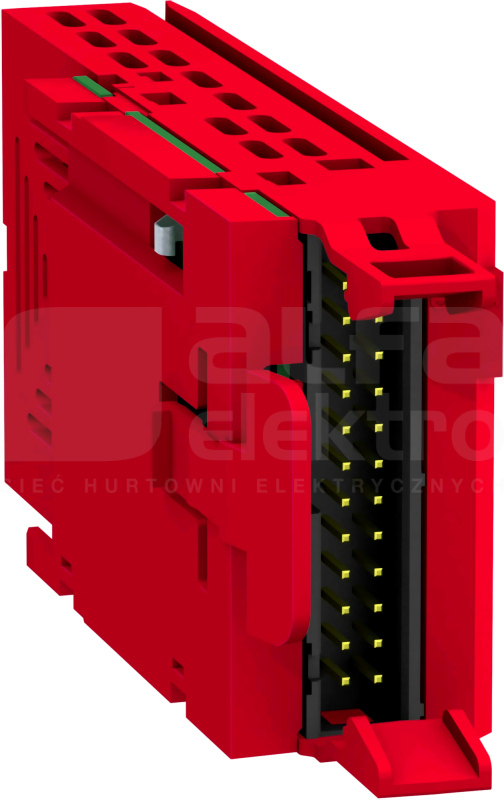

VW3M3501 MODUŁ BEZPIECZEŃSTWA ESM LXM32

This product is part of the Lexium 32 range, an offer of motion servo drives for machines from 0.15kW to 7kW. This ESM safety card is for Lexium 32 servo drive. It is an ESM safety card with a rated supply voltage of 24V DC and 19V to 30V voltage limits. It provides reverse polarity protection on input and short-circuit protection on output. It offers safety functions like SOS (safe operating stop), SLS (safe limited speed), SS1 (safe stop 1), STO (safe torque off), SS2 (safe stop 2) with safety levels SIL 3, SILCL 3 and PL = e. It meets EN/IEC 61508, ISO 13849-1 and EN/IEC 62061 standards. This card is compatible with Lexium 32 servo drive. Lexium 32 is a servo drive range with three or four servo drive models and two servo motor families plus an intelligent selection of options. Servo drives and servo motors from 0.15kW to 7kW for maximum performance
