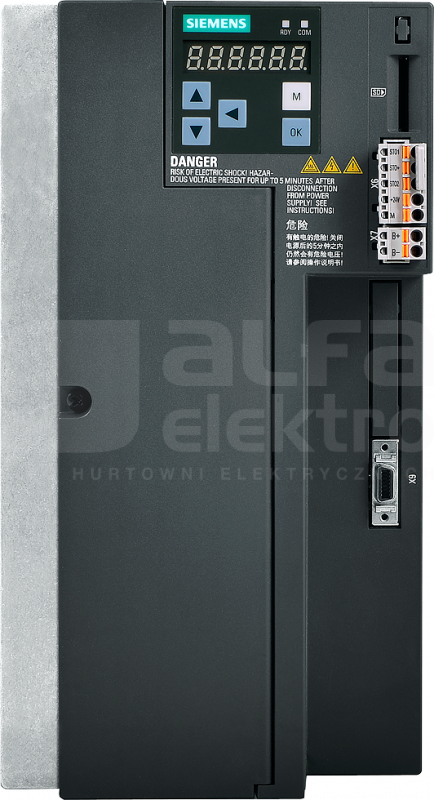

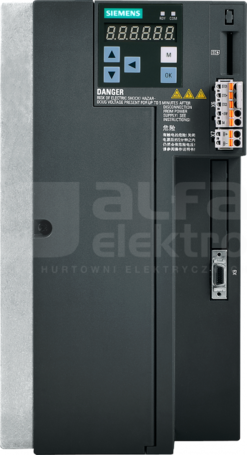

SINAMCIS V70 380-480V 3A Falownik

Możliwość wykupienia dodatkowej gwarancji producenta (6FC85053EX030AA0 – gwarancja 3-letnia, 6FC85055EX030AA0 – gwarancja 5-letnia)

SINAMCIS V70 SPINDLE Input voltage: 380-480 V 3 A -15%/+10% 24.5 A 50/60 Hz Output voltage: 3AC Zero-One 19.6 A 0-330 Hz Degree of protection: IP20 Size C, 140x260x240 (WxHxD) Spindle drive SINAMICS V70 for turning and milling. The SINAMCIS V70 spindle drive controls the spindle in standard machine tool applications together with SIMOTICS M-1PH1 main motor. The system is designed essentially for applications where cost effectiveness is the primary consideration. The key performance data of the drive are aligned to perfectly fit to the solution provided by the SINUMERIK 808D ADVANCED. One of the benefits is the compact module with integrated infeed, inverter and closed-loop position control for spindle axis. Coated electronic modules and commissioning on CNC directly are benefits, too. As well as the faster commissioning thanks to pre-configured motor data stored in drive and that it is CE certified. The SINAMICS V70 spindle drive is available in the frame sizes FSB to FSD and in a line voltage from 380 V to 480 V 3 AC. SINAMICS - simply my drive!
