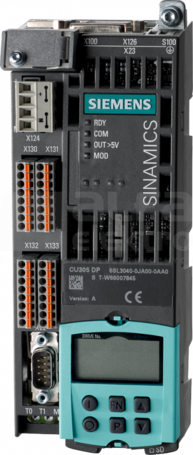

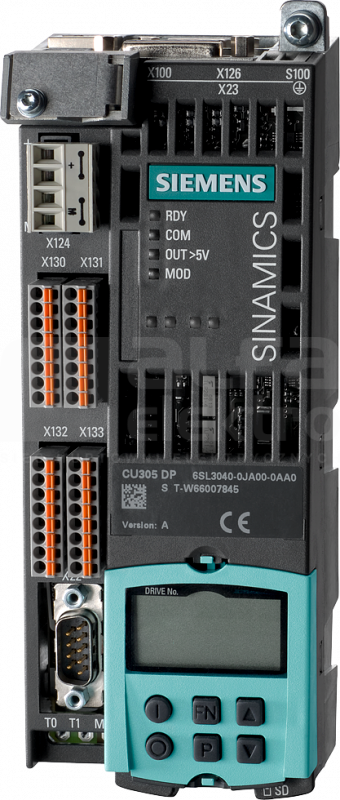

SINAMICS S110 CONTROL UNIT CU305 PN WITH PROFINET INTERFACE WITHOUT MEMORY CARD Control Unit SINAMICS Control Unit CU305 PN for the SINAMICS S110 servo converter. The CU305 Control Unit controls the PM340 Power Module via the PM-IF interface. For example, for diagnostic purposes, a BOP20 Basic Operator Panel can be snapped directly onto the CU305. Further, for extensive diagnostics and commissioning functions, an Intelligent Operator Panel (IOP) can be operated remotely on the RS232 interface. At the integrated DRIVE-CLIQ socket, DRIVE-CLIQ motors or SMC Sensor Modules (Sensor Modules Cabinet-Mounted) can be connected to operate motors without a DRIVE-CLIQ interface, too. The status of the CU305 is displayed via LEDs of different colors and it can optionally be operated with a memory card. Commissioning and diagnostics of the CU305 and the connected components is performed with the STARTER commissioning tool. A memory card is available for the CU305 Control Unit. SINAMICS – the integrated drive family for every field of application
Dane techniczne
Głębokość
71 mm
Liczba wejść analogowych
1
Liczba wejść cyfrowych
8
Szerokość
73 mm
Wysokość
195 mm
Z elementem regulacyjnym/sterującym
Tak
Ze złączem do komputera PC
Tak
Dozwolone zastosowanie w przemyśle
Tak
Obsługa protokołu PROFINET IO
Tak
Dozwolone zastosowanie w budownictwie mieszkaniowym i obiektach handlowych
