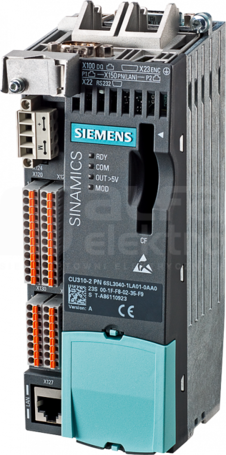

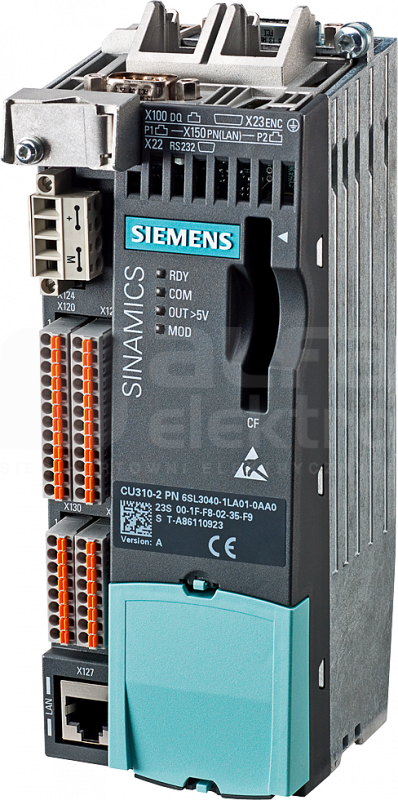

SINAMICS S120 CONTROL UNIT CU310-2 PN WITH PROFINET INTERFACE WITHOUT COMPACTFLASH CARD Control Unit SINAMICS Control Unit CU310-2 PN for single-axis drives with the SINAMICS S120 converter system. The CU310-2 Control Unit with PROFINET interface (without CompactFlash Card) controls the Power Modules in blocksize format. DRIVE-CLiQ motors or Sensor Modules Cabinet-Mounted (SMC) can also be connected to the integrated DRIVE-CLiQ socket to permit the operation of motors without a DRIVE-CLiQ interface. With the Basic Operator Panel (BOP20), parameters can be changed directly on the device. The Basic Operator Panel can also be snapped onto the CU310-2 Control Unit during operation to perform troubleshooting procedures. The Control Unit is commissioned and diagnosed with the STARTER commissioning tool. For the Control Unit a CompactFlash Card is available and for the DRIVE-CLiQ-Port a dust protection sealing plug is available. SINAMICS – the seamless drive family for every application area
Dane techniczne
Głębokość
75 mm
Liczba wejść analogowych
1
Liczba wejść cyfrowych
11
Liczba złączy PROFINET
2
Szerokość
73 mm
Wysokość
191 mm
Produkty powiązane i akcesoria
Opis produktu
Service Protect 3 years service coverage for your SINAMICS converter with extended service period of 3 years. "Service Protect 3 years" can be purchased any time, but must be linked within 48 months after purchase and during the default warranty period of the hardware with the associated hardware; online...
Service Protect 5 years service coverage for your SINAMICS converter with extended service period of 5 years. "Service Protect 5 years" can be purchased any time, but must be linked within 48 months after purchase and during the default warranty period of the hardware with the associated hardware; online...
