Możliwość wykupienia dodatkowej gwarancji producenta (6FC85053EX010AA0 – gwarancja 3-letnia, 6FC85055EX010AA0 – gwarancja 5-letnia)

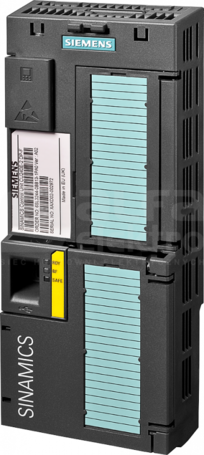

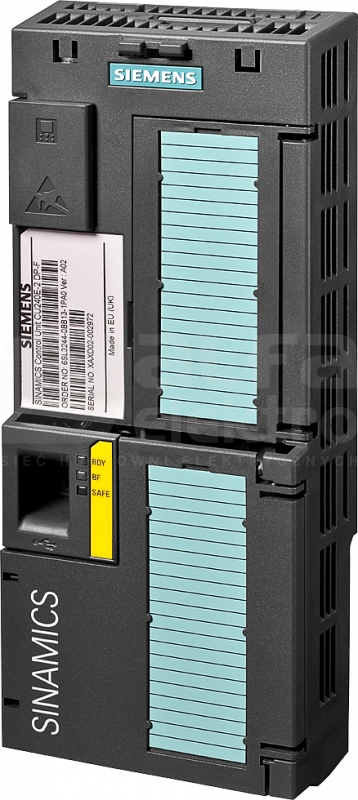

SINAMICS G120 CU240E-2 DP-F Control Unit E-type Safety Integrated STO F-type SS1, SLS, SSM, SDI PROFIBUS DP 6 DI, 3 DQ, 2 AI, 2 AQ, max. 3 F-DI PTC/KTY interface USB and SD/MMC interface Degree of protection IP20 Ambient temperature 0 to +50 °C without Power Module Control Unit SINAMICS CU240E-2 DP-F Control Unit for standard applications in general machinery construction for modular SINAMICS G120 inverters. The CU240E-2 Control Unit is part of the modular SINAMICS G120 inverter (comprising power unit, control unit, operator panel).
The control unit is designed for all of the usual applications with U/f or vector control. These include encoderless basic applications in general machinery construction, for example.
The CU240E-2 is equipped as standard with the integrated Safe Torque Off (STO) safety function.
Further, the control unit has the integrated SS1, SLS, SDI and SSM safety functions, allowing it to address a wide range of applications.
The CU240E-2 Control Unit controls and monitors the power unit (Power Module) and the connected motor several control modes can be selected. It facilitates communication to a local or central control system as well as to the monitoring equipment – and is used to connect all process-related auxiliary equipment and external components (sensors, valves, contactors, etc.)
The I/O interface, the fieldbus interfaces and the additional software functions optimally support its use in general machinery construction.
For intuitive series commissioning, a card slot is provided for cloning parameters sets. The communication interface of the inverter is defined when selecting the CU240E-2. The following integrated communication versions are available: CU240E-2 with USS and Modbus RTU protocols, CU240E-2 DP PROFIBUS and CU240E-2 PN PROFINET, EtherNet/IP. The Control Unit can be operated with the following SINAMICS power units: PM240-2 (0.55 kW to 132 kW) and PM240 (up to 250 kW). SINAMICS - simply my drive!
