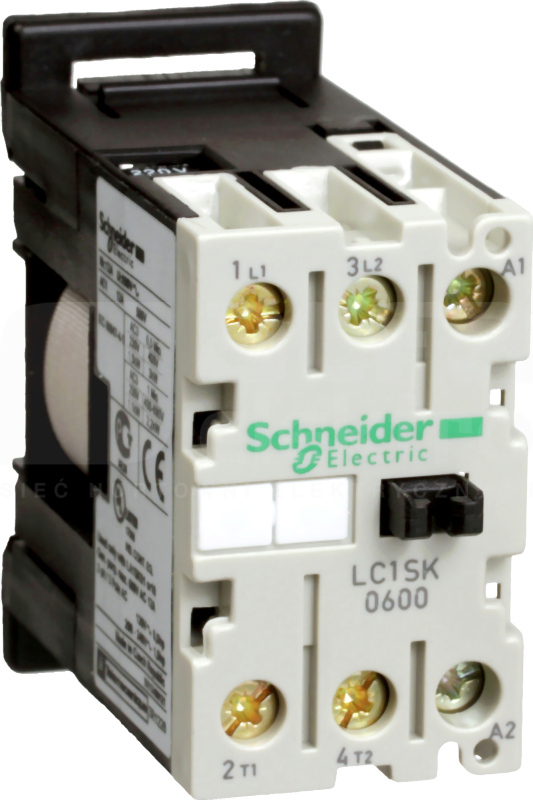

TeSys SK mini-contactor, 2 poles (2NO), for non inductive load applications up to 12A/690V AC-1, and for 1-phase motor control applications up to 6A/690V AC-3 (for 3-phase motors an add-on contact block LA1SK must be mounted on contactor). It provides a 400V 50/60Hz AC control circuit, connection by screw clamp terminals. For operating rates until 1200 cycles/hour and ambient temperature -20/+50°C, it procures high reliability and durability. Compact (27mm width), for clipping on a 35mm DIN rail. Add-on contact blocks LA1SK (power pole, instantaneous auxiliary contacts) and suppressor modules LA4SK available (to be ordered separately). Multi standards certified (IEC, UL, CSA, CCC, EAC), Green Premium product (RoHS/REACh)
Moduł tłumiący TeSys SK do ochrony cewek styczników miniaturowych LP1SK i przekaźników CA3SK. Do użytku z obwodami sterowania 24-250 V DC, zapewnia ochronę za pomocą diody, zapewniając ochronę przed przepięciami. Mocowanie po prawej stronie stycznika (bez użycia narzędzi), element spolaryzowany...
TeSys SK suppressor module, for coil protection of mini contactors LC1SK, LC1SKGC, LP1SK and mini control relays CA2SK, CA3SK. To be used with 24-48V AC or DC control circuits, it provides varistor protection limiting the transient voltage to 2 Uc max. Clipping onto the right-hand side of contactor (no...
TeSys SK suppressor module, for coil protection of mini contactors LC1SK, LC1SKGC, LP1SK and mini control relays CA2SK, CA3SK. To be used with 72-250V AC or DC control circuits, it provides varistor protection limiting the transient voltage to 2 Uc max. Clipping onto the right-hand side of contactor...
