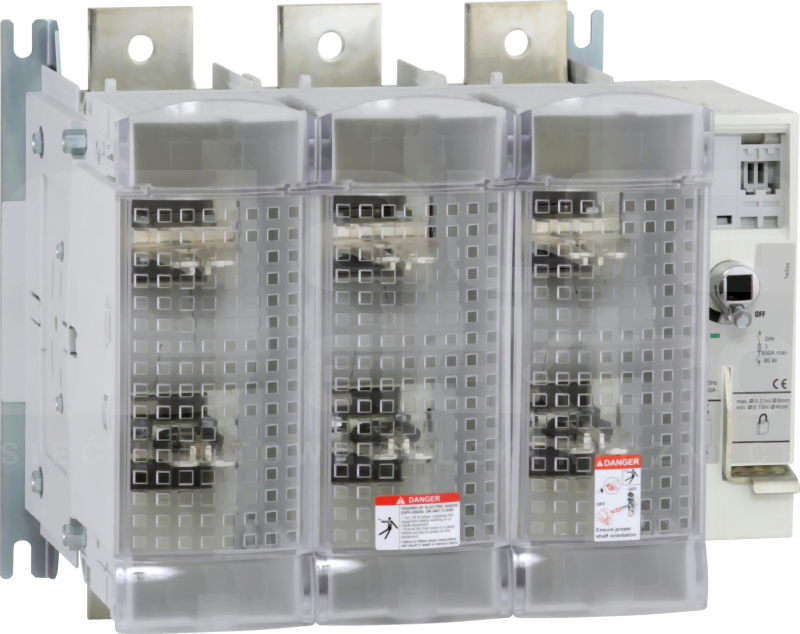

TeSys GS fuse switch-disconnector, 3 poles (3P), 630A/1000V, to be used with DIN blade fuse links size 3 up to 630A, for motor applications up to 355kW@400V AC-23. To be equipped with a direct operating handle GS1AH104 (to be ordered separately), or with an external operating handle GS2AH that can be front side, left-hand side, or right-hand side mounting (several models available). It provides screw terminals with 3P terminal shrouds, high short circuit current rating 100kA@400V. Add-on auxiliary contact modules GS1AM (front mounting), GS1AN (side mounting), GS1AF (top mounting for blown signaling with stricker fuses) can complete the assembly (to be ordered separately). Type aM and gG size 3 blade fuse links without strickers DF2KA, DF2KN and with strickers DF4KA, DF4KN are available (to be ordered separately). Multi standards certified (IEC, Marine), Green Premium compliant (RoHS/REACh)
TeSys GS instantaneous auxiliary contact block for all 3-pole and 4-pole 50-1250A IEC and 30-800A UL fuse switch-disconnectors GS2D, GS2E, GS2F, GS2G, GS2J, GS2K, GS2L, GS2M, GS2N, GS2P, GS2Q, GS2S, GS2T, GS2V. It provides 1NC+1NO contacts rated up to 4A/48V DC-13 and 10A/230V AC-15, for I/O position...
TeSys GS instantaneous auxiliary contact block for all 3-pole and 4-pole 50-1250A IEC and 30-800A UL fuse switch-disconnectors GS2D, GS2E, GS2F, GS2G, GS2J, GS2K, GS2L, GS2M, GS2N, GS2P, GS2Q, GS2S, GS2T, GS2V. It provides 2NC+2NO contacts rated up to 4A/48V DC-13 and 10A/230V AC-15, for I/O position...
TeSys GS accessory, shaft extension for external operating handle, to be used with 3-pole and 4-pole 600A-1250A IEC/UL fuse switch-disconnectors GS2S, GS2T, GS2V. Shaft length 400mm, cross section 12x12mm. Green Premium compliant (RoHS/REACh)
TeSys GS external operating handle for 3-pole and 4-pole 630-1250A IEC fuse switch-disconnectors GS2S, GS2SB, GS2T, GS2TB, GS2V, GS2VB. Black handle with grey front plate, padlockable, to be mounted on side of an enclosure with IP65 protection, for right-hand side operation. To be completed with a shaft...
TeSys GS external operating handle for 3-pole and 4-pole 630-800A IEC fuse switch-disconnectors GS2S, GS2SB, GS2T, GS2TB. Black handle with grey front plate, padlockable, to be mounted on door of an enclosure with IP65 protection, for front side operation. To be completed with a shaft for external operator...
