XCMH2121L1 Wyłącznik krańcowy

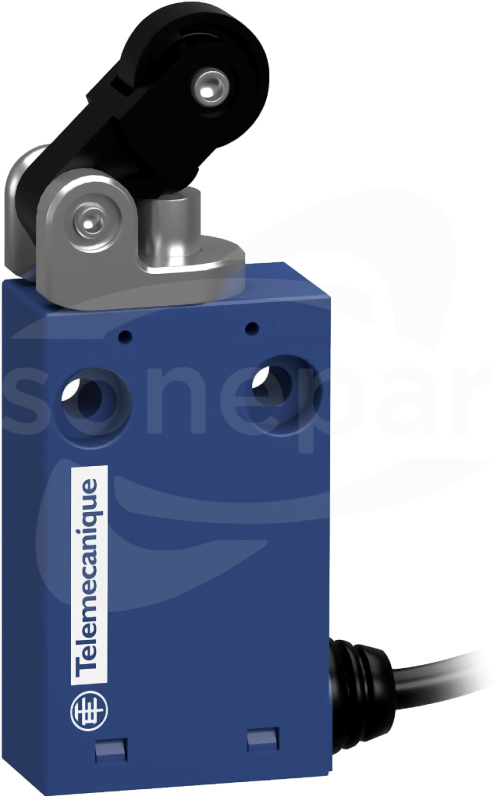

This product is part of the XC Standard range, an offer of limit switches. The limit switch is a device that converts a mechanical motion into an electrical control signal. This limit switch is equipped with a thermoplastic roller lever plunger operator for horizontal actuation in 1 direction. The movement of its operating head is rotary. This cost-effective, rugged and miniature limit switch is designed for medium duty applications. This pre-wired limit switch has a PvR, 1m long, lateral cable (diameter 4.2mm). It is an IP66 and IP67 for waterproofness, IK04 for robusness rated product. It has 1 normally closed + 1 normally opened, snap action contacts with positive opening operation and provides switch actuation by 30° cam. The XCMH2121L1 switch features a plastic miniature body 30mm (width) x 16mm (depth) x 50mm (height), a Zamak head and a PvC cable. It weighs 0.077kg. It is intended for mobile equipment and all industrial machine applications such as hoisting, material handling, conveying, packaging, etc. This product is certified by UL, cULus and UKCA. It meets CE, EN/IEC 60947-5-1, UL 508 and CSA C22-2 n°14 standards. This miniature limit switch has 2 fixing holes, diameter 4.2mm, and a flexible cable for an easy mounting. The XCMH limit switches are designed to be robust in a miniature format. Telemecanique Sensors limit switches are ideal for industrial environments. They are precise, robust, reliable, easy to install and offer high repeatability
