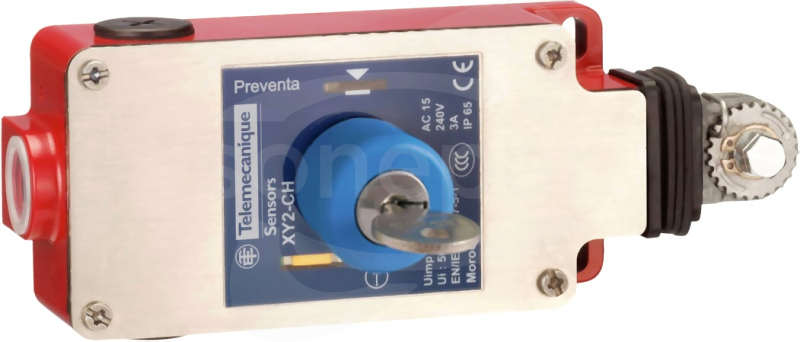

This product is part of the XY2C range, an offer of emergency stop rope pull switches. This XY2CH Emergency Stop Rope pull Switch is designed with a single anchor point and integrated quick tensioner. It operates with a maximum rope length of 30 meters. This product allows operator to trigger the stop of potentially dangerous machines at any point of its working area. It is furnished with screw clamp terminals for electrical connection and 3 tapped entry for ISO M20 cable gland. It has 1 normally closed and 1 normally open slow break contacts. It has a Zamak red RAL 3000 body with a key-operated reset pushbutton (key number 421), chloroprene bellows, no pilot light. XY2C offer is ideal for machines requiring stopping of dangerous movement in the immediate vicinity of the machine (woodworking, printing or textile machines, shears...). This product is certified by CCC, EAC and UL. It meets CSA C22.2 No 14, EN/ISO 13850, EN/IEC 60947-5-1, EN/IEC 60204-1, EN/IEC 60947-5-5 standards. Dedicated accessories (mounting kits, galvanized cables, tensioners, turnbuckles, end springs,etc ) can be purchased separately. These emergency stop rope pull switches can be equipped with trip indicators, cable tension adjustment can be performed using a turnbuckle. XY2C Simple and Emergency Stop Safety Cable Pull Switches provide machine operators a quick way to shut down hazardous machines. Operators must be able to activate the emergency stop from any point within their work area
