PRAGMA 3x18-PT-MU OBUDOWA PODTYNKOWA Z TWORZYWA

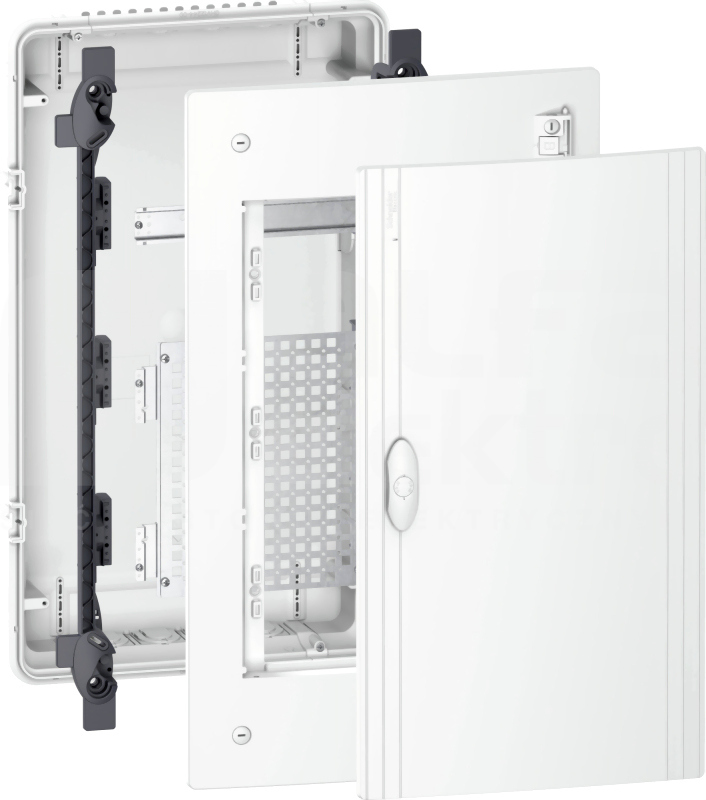

This Pragma enclosure is a flush mounted versatile enclosure. This plastic enclosure is composed of 1 row of 18 modules of 18mm and a perforated mounting plate. It can accomodate all types of modular or non-modular switchgear. This enclosure is dedicated to indoor installation. The IP degree of protection is IP40. It is provided with a plain white door. The colour of enclosure is white (RAL 9016). It is intended for new or renovated installation in residential and small buildings. The cables can enter via the top or bottom of the enclosure by removable cable entry plates. It enables entry by cable or tube. It is equipped with a back plate and a reversible front cover with notch. It is provided with DIN rail and universal grid, both fixed in 2 different positions on the back of the enclosure. It has no terminal block. The electrical insulation class is class II (double insulated). The overvoltage category is class II. The dissipated power is 87W. This product complies with IEC 61439-1, IEC 60670-1 and 24 standard. The dimensions are (W) 456mm x (H) 630mm x (D) 86mm. The material is a plastic self-extinguishing material. Its resistance to flames and to abnormal heat is 850°C as per IEC 60695-2-11. It is halogen free. The IK degree of protection is IK09. The operating temperature is -25°C to 60°C
